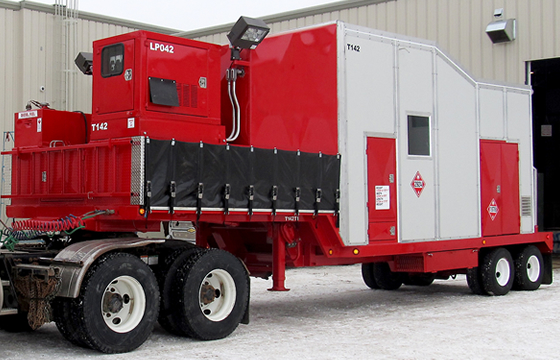

Recycling Cyclone Separators of Boyd Energy Services
Our recycling cyclone separators are designed to operate with 99.99% efficiency removing liquids and solids from an effluent gas stream to 2-3 microns. They are specifically designed for Inline ECF and LGR testing.
The centripetal flow type Recycling Separator has two effective stages of separation. In the first stage all free liquid and most of the entrained liquid are spun out of the gas by centrifugal force and are collected. In the second stage the small amount of entrained liquid left in the gas is spun out under the influence of greatly increased centrifugal force and is collected by a recycling circuit. The term centripetal flow here denotes gas flow converging towards center, as in a whirlpool.

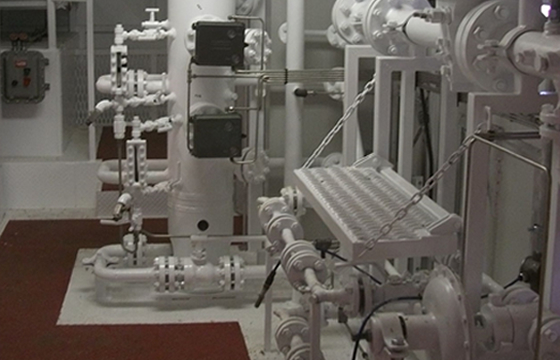

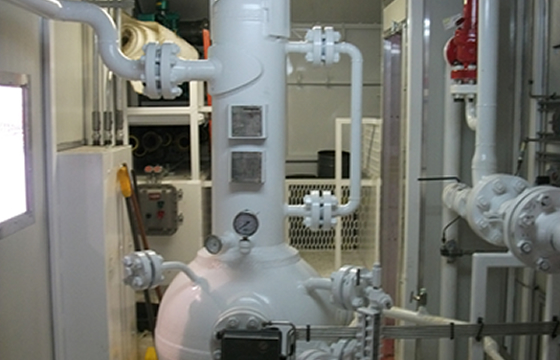

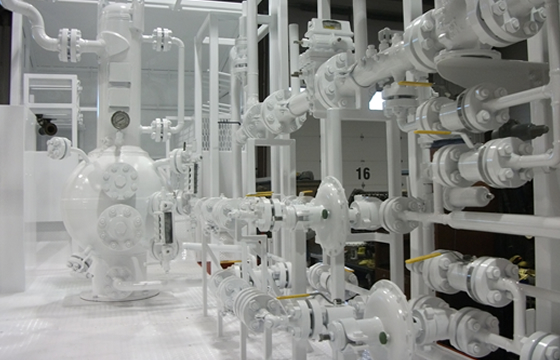

The liquid chamber in these separators contains baffles for liquid stilling or for isolation of the level control float as needed. The liquid chamber may be oversized (pot belly) to handle very large liquid flow, and may be constructed for gravity separation of two immiscible liquids. These separators are designed for ultra-high efficiency to meet our customer’s needs.
Recycling Cyclone Separators of Boyd Energy Services
- Maximum Operating Pressure (limited to PSV set pressure) – 2000 psig (13.79 MPag)
- Pressure Relief Valve Maximum Flow Rate – 47.9 MMscf/d (1,349.5 E3m3/d)
- Maximum System Gas Flow Rate at 90% M.A.W.P. – 43.11 MMscf/d (1,214.6 E3m3/d)
- Fluids Retention Time to Obtain Separation – 5minutes
- Maximum Vessel Liquid Storage Capacity – 1.46 bbl (0.23 m3)
- Maximum Vessel Liquid Rate Operating at 50% Capacity – 1,200 bbl/d (191 m3/d)
- Maximum Vessel Operating Temperature at Maximum Pressure – 100°F (38°C)
- Minimum Vessel Operating Temperature at Maximum Pressure – -16°F (-27°C)
Unit Dimensions
- Width – 8.0 ft (2.4 m)
- Length – 32 ft (9.75 m)
- Height – 13 ft 8 in (4.2 m)
- Weight Estimate – 35,200 lbs (16,000 kg)
Fluid Transfer Size & Pressure Rating
- Fluid Inlet Size – 3 inch (76.2 mm)
- Inlet M.A.W.P. – 2,000 psig (13,789 kPa)
- Gas Outlet Size – 3 inch (76.2 mm)
- Oil Outlet Size – 2 inch (50.8 mm)
- Water Outlet Size – 2 inch (50.8 mm)
Flow Instrumentation
- EFM Data Aquisition System
- Meter Run Senior Daniel’s 4 inch (101.6 mm)
- Liquid Turbines 1 inch (25.4 mm)
Approval & Certifications
- Sour Service NACE Standard MR0175/ISO15156
- Vessel – ASME Section VIII Div. 1
- Piping – ASME B31.3
- Alberta Boiler Safety Association

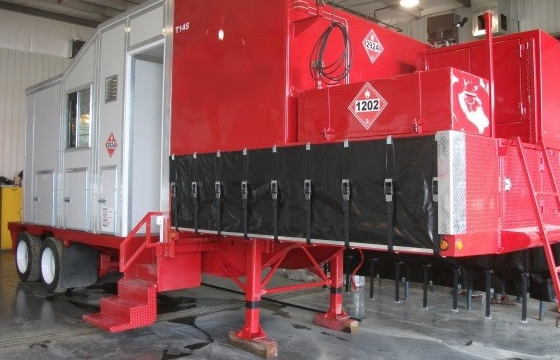

1440 PSI/10kPa Recycling Cyclone Separator of Boyd Production Testing Inc.
- Maximum Operating Pressure (limited to PSV set pressure) – 1440 psig (9,927.46 kPa)
- Maximum Vessel Liquid Storage Capacity – 0.784 bbl (0.124 m3)
- Maximum Liquid Rate (operating 1/2 full) – 637.88 bbl/day (101.41 m3/d)
- Liquid Retention Time at Maximum Flow Rate – 1 minute
- System Maximum Gas Rate (limited by PSV) – 32.32 MMscf/d (915 E3m3/d)
- Maximum Gas Flow Rate @ 90% Maximum Pressure – 29.09 MMscf/d (823.812 E3m3/d)
- Pressure Relief Maximum Flow Rate – 32.32 MMscf/d (915 E3m3/d)
- Flowmeter Maximum Gas Flow Rate @ 90% Maximum Pressure – 38.89 MMscf/d (1,101.24 E3m3/d)
- Maximum Vessel Operating Temperature at Maximum Pressure – 100°F (38°C)
- Minimum Vessel Operating Temperature at Maximum Pressure – -20°F (-28.8°C)
Unit Dimensions
- Width – 8.9 ft (2.69 m)
- Length – 32 ft (9.75 m)
- Height – 13.8 ft (4.16 m)
- Weight Estimate – 36,400 lbs (16,491 kg)
Fluid Transfer Size & Pressure Rating
- Inlet Size – 3 inch (76.2 mm)
- Inlet Pressure Rating – 2,000 psig (13,789 kPa)
- Gas Outlet – 3 inch (76.2 mm)
- Oil Outlet Size – 2 inch (50.8 mm)
- Water Outlet Size – 2 inch (50.8 mm)
- Outlet’s Pressure Ratings – 2,000 psig (13,789 kPa)
Flow Instrumentation
- EFM Data Aquisition System
- Meter Run Senior Daniel’s 4 inch (101.6 mm)
- Liquid Turbines 1 inch (25.4 mm)
Approval & Certifications
- Sour Service NACE Standard MR0175-94
- Vessel – ASME Section VIII Div. 1
- Piping – ASME B31.3
- Alberta Boiler Safety Association
